Hot runner shipment

Hot runner shipment

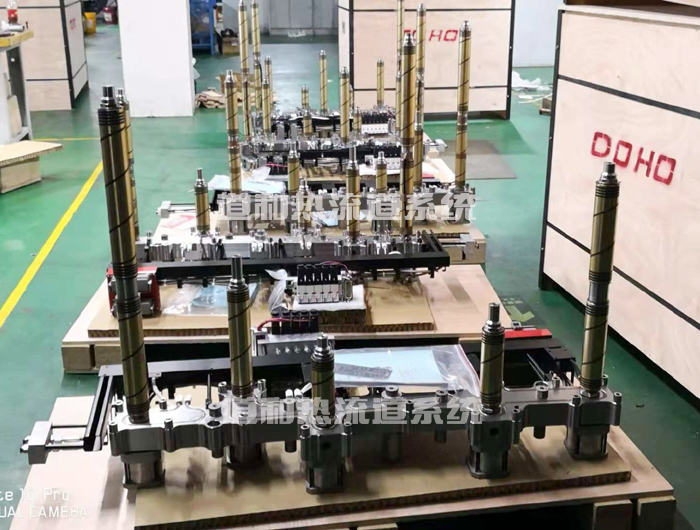

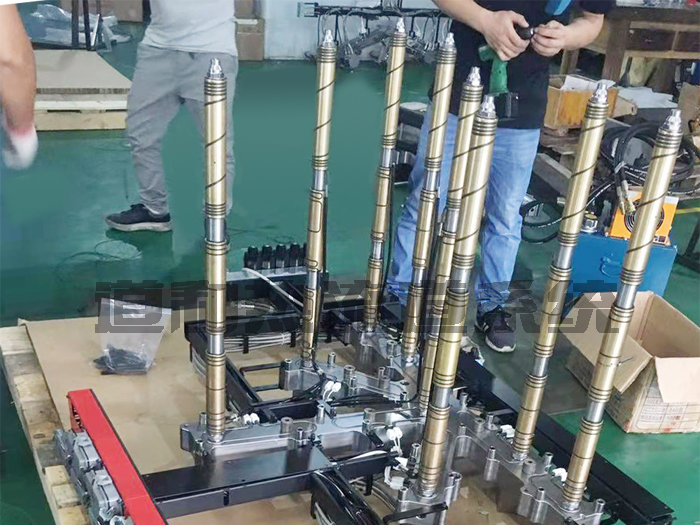

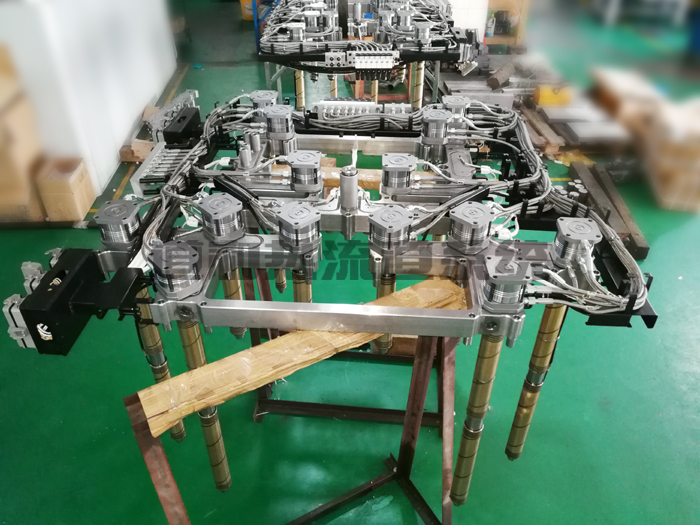

  • Two sets of large-scale hot runner systems for car fenders are shipped.

    1. Two products are produced from one mold, and one product is fed with 7 point sequential valves;2. A set of hot runner system has 14 points.

  • Introduction to the integrated automotive hot runner system:

    1. The hot sprue is connected to the splitter plate in a threaded manner, and the heating system, water circuit, oil circuit, or gas circuit are all installed before leaving the factory;2. Convenient disassembly and assembly, effectively preventing glue leakage in the hot runner system, reducing installation difficulty and shortening installation time.3. The hot sprue heating uses a copper sleeve type heater, which adopts independent temperature sensing, precise temperature control, reliable quality, and good stability. Each hot sprue heating ring is equipped with a built-in temperature sensing wire as a backup;4. It can be combined with the use of a timing controller to control the sequence of opening and closing of each gate, in order to control product deformation, welding lines, etc.
