Analytical product: automobile engine wheel

Summary of analysis content: Predict and evaluate the position and appearance of hot nozzle glue before mold opening.

Product materials:PP+40%GF

Analyze the total junction

●There are great differences between the analyzed materials and the actual materials and the relevant parameters of the injection molding machine, and the parameter values such as deformation and pressure are only for optimization and reference, and cannot be quantified. In the analysis, the holding pressure is 80% of the shot pressure, and the optimization of the relevant parameters (with the test mold) can reduce the deformation, the purpose is to correctly evaluate and provide a wide space for forming optimization to improve the quality and mass production of the product.
●According to your requirements, the flow channel at the ring can be adjusted to 16mm, and the product fuse can be moved to the ring.
●The following figure shows the thickness of the side. The rule of defining the thickness in moldflow software is: when the height is higher than the width, the thickness is calculated by the width.

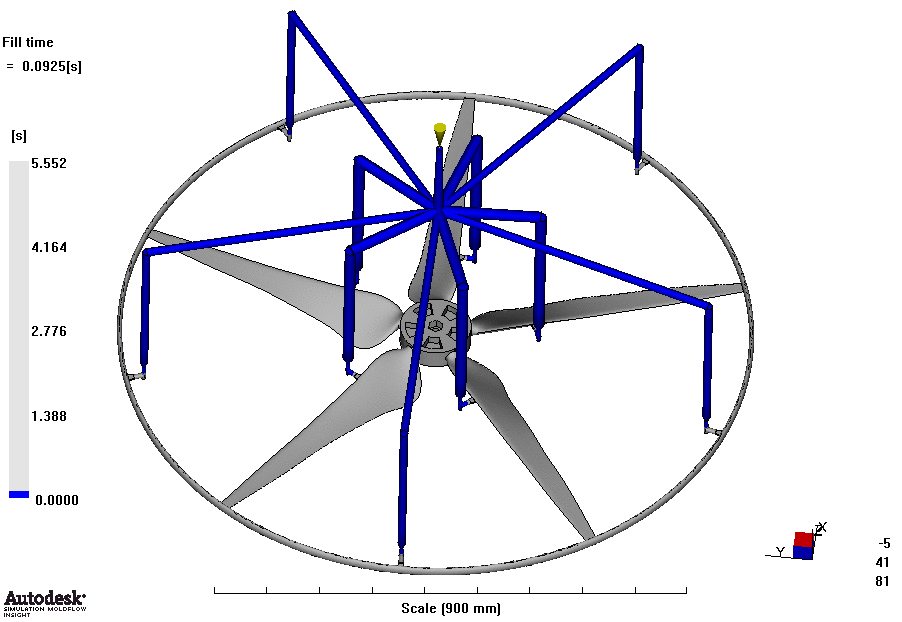

Fill time motion picture play

Fill the pressure motion picture
