Analytical product: automobile wheel hub

Description of analysis content: Predict and evaluate the position and deformation of hot nozzle before mold opening.

Product materials:PA66+50%LGF

●There are great differences between the analyzed materials and the actual materials and the relevant parameters of the injection molding machine, and the parameter values such as deformation and pressure are only for optimization and reference, and cannot be quantified. In the analysis, the holding pressure is 80% of the shot pressure, and the optimization of the relevant parameters (with the test mold) can reduce the deformation, the purpose is to correctly evaluate and provide a wide space for forming optimization to improve the quality and mass production of the product.

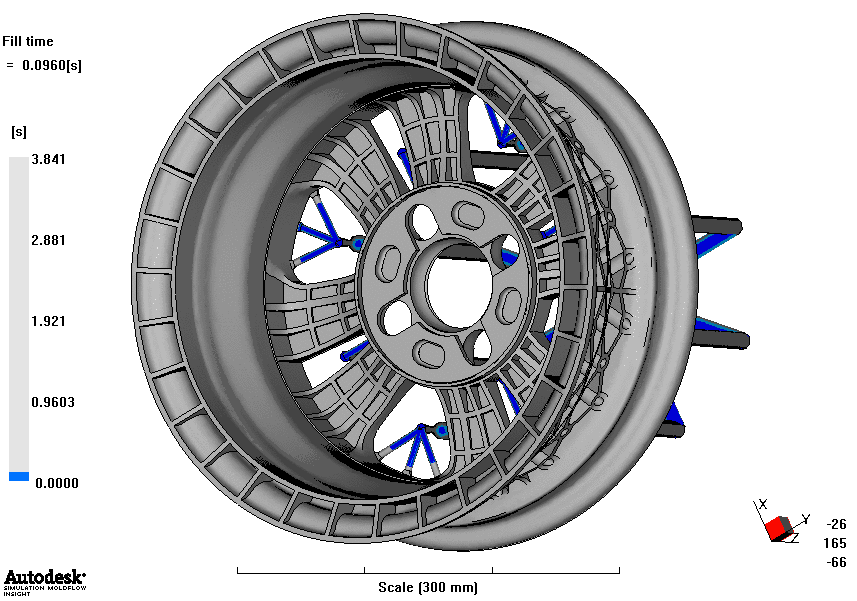

Fill time motion picture play​

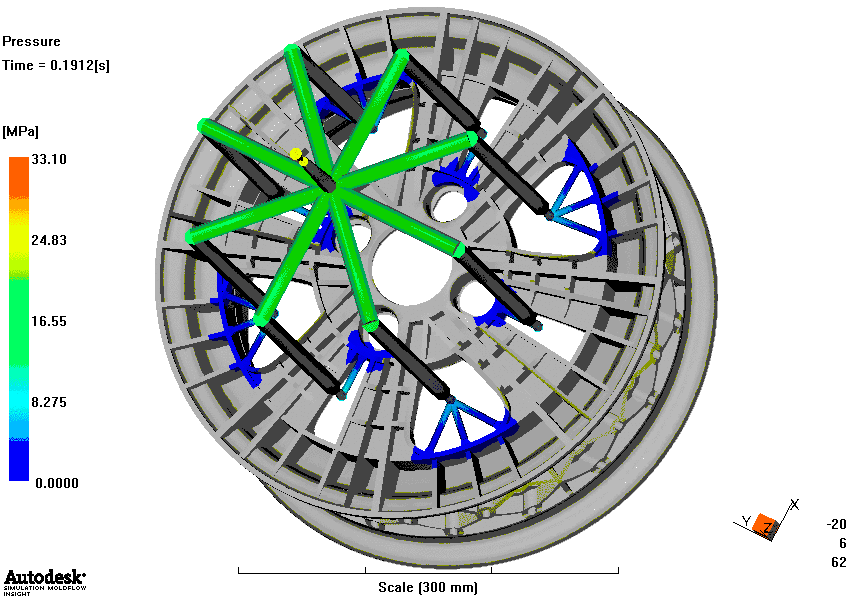

Fill the pressure motion picture​
