Analysis Product: Vertical air conditioning panel

Summary of analysis:Predict and evaluate the position, pressure and deformation of hot nozzle before mold opening.

Product materials:ABS

Analyze the total junction

●There are great differences between the analyzed materials and the actual materials and the relevant parameters of the injection molding machine, and the parameter values such as deformation and pressure are only for optimization and reference, and cannot be quantified. In the analysis, the holding pressure is 80% of the shot pressure, and the optimization of the relevant parameters (with the test mold) can reduce the deformation, the purpose is to correctly evaluate and provide a wide space for forming optimization to improve the quality and mass production of the product.
●With the sequential gluing from G1 to G5, the fuse wire can be better controlled.
●The main reason for the overall plane deformation of Z-axis is shrinkage, and the influence of cooling water and molecular alignment is relatively small, and the plane deformation is 10.524mm.

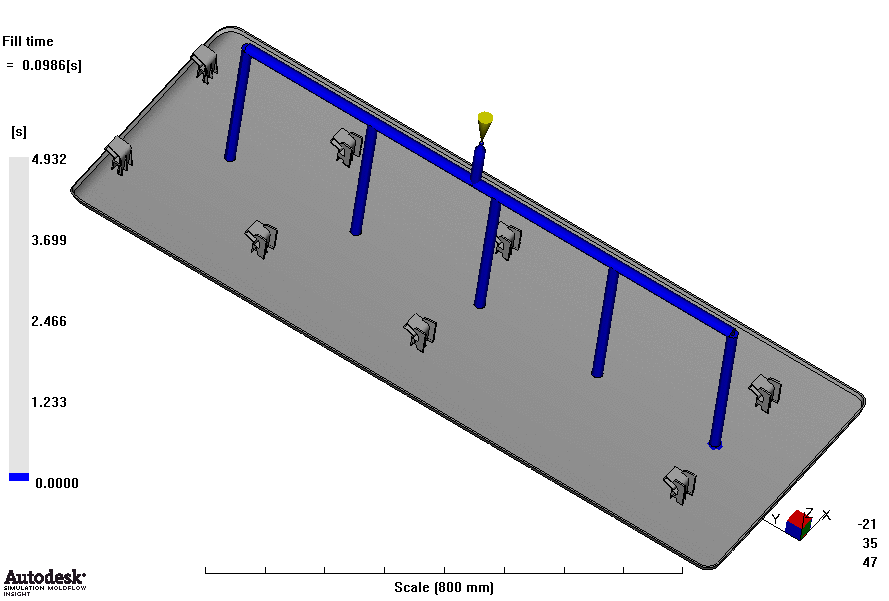

Fill time motion picture play​

Fill the pressure motion picture

​
